Description

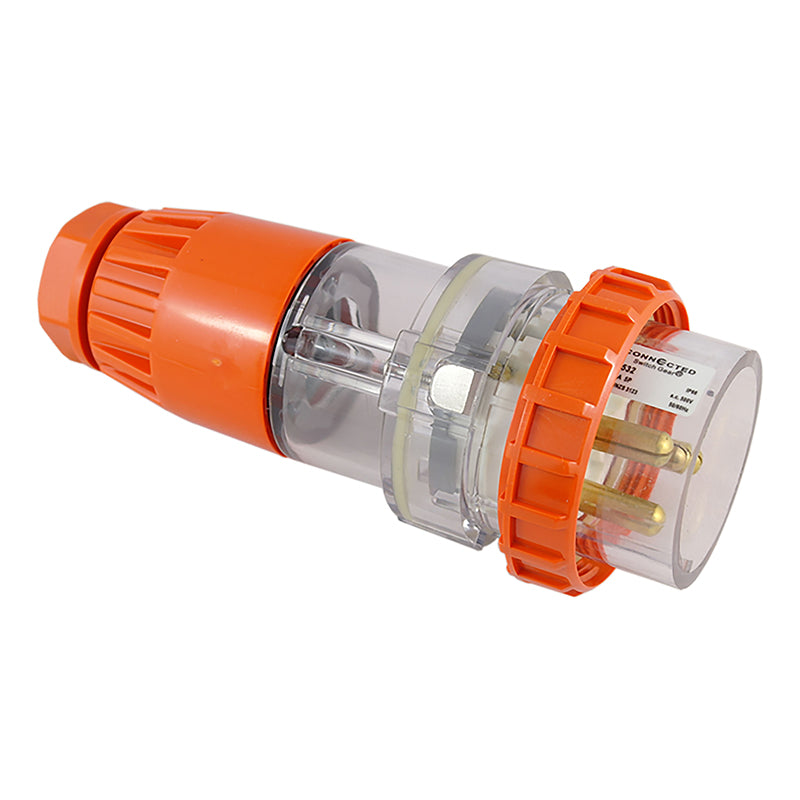

The Impact Series from Connected Switchgear features industrial strength plugs made from impact and chemical resistant material. The Impact Series plug is fitted with a captive ring to secure sockets to achieve an IP66 weather protection rating.
- 5 pin three phase straight plug
- Transparent impact and chemical resistant housing
- With fitted captive ring for IP66 rated ingress protection
- Internal cable clamp to prevent cable twisting
- Round pin configuration, suitable for a flexible hose
- Minimum cable entry diameter: 10mm², Maximum cable entry diameter: 27mm²
- Minimum terminal capacity: 2.5mm², Maximum terminal capacity: 16mm²
- Rating (Amps): 32A
- Rated Voltage: 500VAC
- Rated Frequency: 50Hz/60Hz
- Operating temp; -40°C - 80°C
- Complies with AS/NZS 3100:2009, AS/NZS 3100:2017, AS/NZS 3112:2011, AS/NZS 3123:2005
- SAA approved
- 5 pin three phase straight plug
- Transparent impact and chemical resistant housing
- With fitted captive ring for IP66 rated ingress protection
- Internal cable clamp to prevent cable twisting
- Round pin configuration, suitable for a flexible hose
- Minimum cable entry diameter: 10mm², Maximum cable entry diameter: 27mm²
- Minimum terminal capacity: 2.5mm², Maximum terminal capacity: 16mm²
- Rating (Amps): 32A
- Rated Voltage: 500VAC
- Rated Frequency: 50Hz/60Hz
- Operating temp; -40°C - 80°C
- Complies with AS/NZS 3100:2009, AS/NZS 3100:2017, AS/NZS 3112:2011, AS/NZS 3123:2005
- SAA approved
