Description

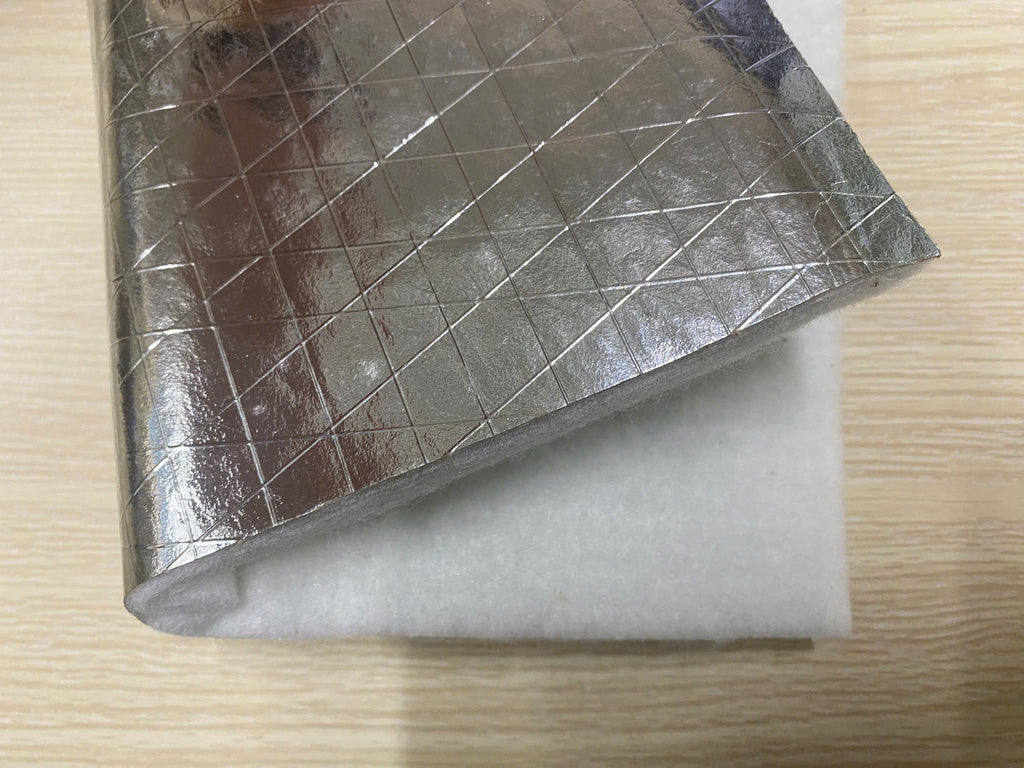

Polycycle Laminated is a recycled PET insulation blanket faced on one side with aluminium foil. Supplied in 1200 mm wide rolls up to 12 m long, in 20 mm and 30 mm thicknesses, it is the go-to insulation for the underside of metal roofs.
How It Works
Polycycle Laminated is chosen for its function rather than a stated R-value. The foil face reflects radiant heat and acts as a vapour and dust barrier, while the fibre layer behind it reduces conducted heat and provides a neat internal finish. Together they make an effective solution under metal roofing, where radiant heat dominates and thick batts cannot be fitted.
Need a declared R-value in a framed cavity? Choose Polycycle Thermal Insulation instead.
Key Benefits
- Reflects radiant heat — the aluminium foil face tackles the largest part of the heat load under metal roofs.
- Vapour and dust barrier — the continuous foil layer helps keep moisture and dust out of the building.
- Thin and fast to install — 20 or 30 mm rolls fit where batts cannot.
- Low thermal conductivity — λ 0.040 – 0.043 W/m·K.
- Non-ignitable to ISO 11925-2 and non-corrosive to steel to ASTM C1617.
Applications
- Underside of metal roofing
- Industrial, warehouse and factory roofs
- Steel-frame buildings
- Roof and wall sarking
- Retrofit over an existing ceiling
Product Range and Technical Specifications
| Property | Value | Test standard |
|---|---|---|
| Thickness and SKU | 20 mm — PCL001 · 30 mm — PCL002 | — |
| Roll size | 1200 × 12,000 mm | — |
| Facing | Aluminium foil, one side | Visual |
| Mass per unit area | 450 – 750 gsm | ASTM C167 |
| Composition | 80 % recycled PET fibre + aluminium foil facing | — |
| Thermal conductivity λ | 0.040 – 0.043 W/m·K | ASTM C518 · ISO 8301 |
| Reaction to fire | Non-ignitable | ISO 11925-2 |
| Water vapour sorption / fungi | < 0.5 % by weight / pass | ASTM C1104M-19 · C1338 |
| Corrosion to steel | Non-corrosive | ASTM C1617-19 |
| Formaldehyde / TVOC | < 0.05 ppm · TVOC not detected | ASTM D6007-2022 · ISO 16000-6 |
| Recyclability | 90 % recyclable | — |
Tolerances: width ±5 mm · length −10/+20 mm · thickness ±2 mm.
Installation Tip
Lap and tape all joints so the foil face stays continuous. Any break in the foil removes the radiant-heat benefit at that point.
Frequently Asked Questions
Does Polycycle Laminated have an R-value?
It is specified by function — radiant heat reflection plus a vapour and dust barrier — rather than by a declared R-value. For a stated R-value in a framed cavity, use Polycycle Thermal Insulation.
Which way does the foil face go?
Follow the installation guide for your roof system, and keep the foil continuous by lapping and taping every joint.
Can it be used in retrofits?
Yes. It can be installed over an existing ceiling as part of a retrofit.
How to Order
Capiworld supplies to order. Pricing depends on thickness, R-value, panel size, surface finish and order quantity, so we quote each project individually rather than listing a single price.
To place a pre-order or request pricing:
Call (+61) 0426 393 999 — Brian Nguyen, Australia
WhatsApp +84 94 868 0906 — Dave Le, Sales
Email info@capiworld.com.au
Tell us the product, thickness or R-value, panel size, approximate quantity and the project location. We will send you a detailed quotation, along with technical data sheets, test reports and samples if required.
Most quotations are returned within one business day.
