Description

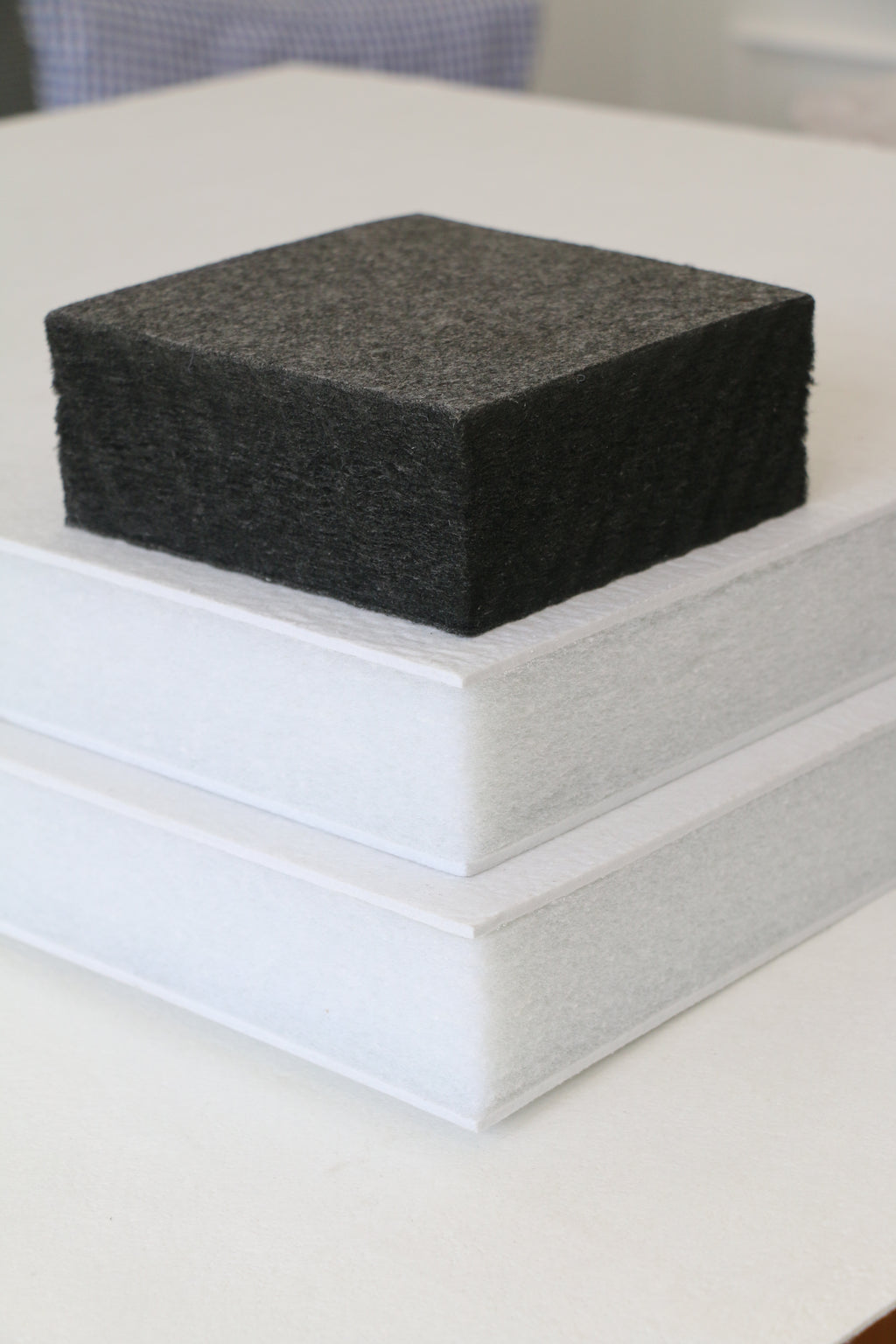

PureSpace Acoustic is a rigid, self-supporting acoustic panel faced with bonded polyester fabric on one face (VERTIFACE) or both faces (DUAL VERTIFACE). It delivers Class A sound absorption from 50 mm and comes in 1200 × 2400 mm sheets.
Why Rooms Get Noisy — and How to Fix It
Hard interior surfaces reflect sound. In open-plan offices, meeting rooms and restaurants this builds up background noise, people raise their voices, and the room gets louder still. Speech becomes hard to understand long before the space feels uncomfortably loud.
The solution is to absorb that reflected energy with an acoustic surface exposed to the room — not material hidden inside the walls.
Key Benefits
- NRC 0.95 at 50 mm — Class A absorption measured in a reverberation room to ISO 354, increasing with thickness.
- Rigid and self-supporting — glue directly to the substrate or mount on battens or Z-clips. No frame or perforated facing required.
- Finished out of the box — fabric faced on one or both sides with a white or black core. No painting or secondary finish.
- Safe for occupied spaces — no mineral fibre, no added formaldehyde, TVOC not detected, and no fungal growth.
Applications
- Offices and open-plan workspaces
- Meeting and conference rooms
- Schools, classrooms and lecture theatres
- Recording studios and control rooms
- Home theatres and media rooms
- Auditoriums
- Restaurants, cafés and hospitality venues
- Healthcare facilities and waiting areas
Product Range and Acoustic Performance
| Thickness | Acoustic performance | Density (kg/m³) | Pack | SKU (VERTIFACE / DUAL) |
|---|---|---|---|---|
| 15 mm | α 0.35 (ISO 10534-2) | 110 – 120 | 6 panels · 17.3 m² | PSA001–002 / PSA011–012 |
| 25 mm | α 0.60 (ISO 10534-2) | 60 – 75 | 6 panels · 17.3 m² | PSA003–004 / PSA013–014 |
| 50 mm | NRC 0.95 — Class A (ISO 354) | 60 – 75 | 3 panels · 8.6 m² | PSA005–006 / PSA015–016 |
| 75 mm | Higher than 50 mm — test report on request | 60 – 75 | 2 panels · 5.8 m² | PSA007–008 / PSA017–018 |
| 100 mm | Higher than 50 mm — test report on request | 60 – 75 | 2 panels · 5.8 m² | PSA009–010 / PSA019–020 |
All panels 1200 × 2400 mm, white or black core. Tolerances: width ±5 mm · length −5/+10 mm · thickness ±1 mm. Declared values are for direct mounting on a rigid substrate; an air gap behind the panel further improves low-frequency absorption.
Technical Specifications
| Property | Value | Test standard |
|---|---|---|
| Composition | 100 % polyester — 60 % recycled PET, thermally bonded | — |
| Facing and core colour | VERTIFACE (one face) · DUAL VERTIFACE (both faces) · white or black core | Visual |
| Layer integrity | No delamination | ASTM C167 |
| Surface burning (Flame Spread / Smoke Developed) | 0 / 70 — Class A (US IBC) | ASTM E84-23c |
| Ignitability / Flame / Heat / Smoke indices | 0 / 0 / 0 / 1 | AS/NZS 1530.3-1999 |
| Water vapour sorption | Non-absorbing | ASTM C1104-19 |
| Fungi resistance | No fungal growth | ASTM C1338-19 |
| Formaldehyde / TVOC | Not detected (< 3 µg/m³ / < 20 µg/m³) | ASTM D6007-2022 · ISO 16000-6 |
| Recycled content / recyclability | 60 % recycled · 100 % recyclable | — |
Fire performance note: Class A under ASTM E84 is a US test classification describing the tested surface-burning behaviour of the finished product. The material is an organic polyester fibre and is not classified as non-combustible. AS/NZS 1530.3 results are indices from that test method and are not a Group Number under AS 5637.1. Confirm the requirements for your building with your certifier or fire engineer.
Specification Clause for Architects
Acoustic wall and ceiling panels shall be ECO-AEROGELS™ PureSpace Acoustic, ___ mm thick, 1200 × 2400 mm, fabric-faced to (one face / both faces), core colour (white / black): a thermally bonded polyester fibre panel containing minimum 60 % recycled PET and free of chemical binder, manufactured by Capiworld Company Limited. Install in accordance with the manufacturer’s installation instructions.
Frequently Asked Questions
What NRC do I need for an office or meeting room?
For noticeable echo reduction, most designers select Class A absorption. PureSpace Acoustic reaches NRC 0.95 at 50 mm. Your acoustic consultant can confirm the coverage area needed.
How are PureSpace panels installed?
Glue them directly to a rigid substrate, or mount them on battens or Z-clips. Mounting with an air gap improves low-frequency absorption.
Will acoustic panels stop noise going into the next room?
Panels reduce echo inside the room. To reduce sound passing between rooms, also fill the partition with Polycycle Acousorb.
Can I cut the panels to shape?
Yes — the polyester panels can be cut to size on site. Contact us for custom shapes or sizes.
How to Order
Capiworld supplies to order. Pricing depends on thickness, R-value, panel size, surface finish and order quantity, so we quote each project individually rather than listing a single price.
To place a pre-order or request pricing:
Call (+61) 0426 393 999 — Brian Nguyen, Australia
WhatsApp +84 94 868 0906 — Dave Le, Sales
Email info@capiworld.com.au
Tell us the product, thickness or R-value, panel size, approximate quantity and the project location. We will send you a detailed quotation, along with technical data sheets, test reports and samples if required.
Most quotations are returned within one business day.
