Description

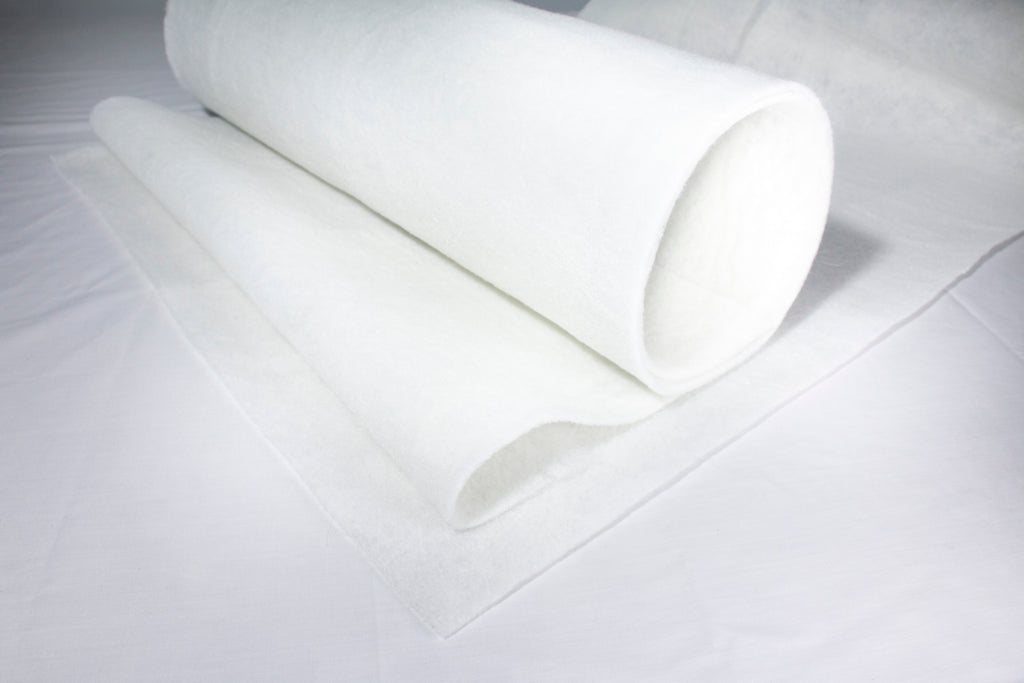

Polycycle Thermoguard is a thin, flexible fire-retardant felt made from 90 % recycled PET fibre with a flame-retardant treatment. Available in 6 mm and 10 mm, supplied in 1200 mm wide rolls up to 12 m long.
When Thickness Is the Constraint
Thermoguard is a thin fire-retardant and thermal barrier for places where there is no room for a thick product. At 6 to 10 mm it follows curves, flanges and irregular shapes that rigid boards cannot, and its thermal conductivity of 0.031 – 0.034 W/m·K is the lowest in the Capiworld range.
Key Benefits
- Lowest conductivity in the range — λ 0.031 – 0.034 W/m·K.
- Flexible — wraps equipment, pipework, tanks, valves and flanges.
- Non-ignitable to ISO 11925-2.
- Moisture resistant and non-corrosive — < 0.5 % water vapour sorption, non-corrosive to steel.
- 90 % recycled content and 100 % recyclable at end of life.
Applications
- Equipment and pipework wrap
- Personnel protection on hot surfaces
- Thin barrier layer within wall or floor assemblies
- Tanks, valves and flanges
- Technical felt for OEM manufacturers
Product Range and Technical Specifications
| Property | Value | Test standard |
|---|---|---|
| Thickness and SKU | 6 mm — PCG001 · 10 mm — PCG002 | — |
| Roll size | 1200 × 12,000 mm | — |
| Mass per unit area | 420 – 750 gsm | ASTM C167 |
| Composition | 90 % recycled PET fibre with flame-retardant treatment | — |
| Thermal conductivity λ | 0.031 – 0.034 W/m·K | ASTM C518 · ISO 8301 |
| Reaction to fire | Non-ignitable | ISO 11925-2 |
| Water vapour sorption / fungi | < 0.5 % by weight / pass | ASTM C1104M-19 · C1338 |
| Corrosion to steel | Non-corrosive | ASTM C1617-19 |
| Formaldehyde / TVOC | < 0.05 ppm · TVOC not detected | ASTM D6007-2022 · ISO 16000-6 |
| Recyclability | 100 % | — |
Tolerances: width ±5 mm · length −10/+20 mm · thickness ±1 mm. Fire-retardant performance is a property of the treated product tested to ISO 11925-2. The base fibre is organic and the product is not classified as non-combustible.
Frequently Asked Questions
Is Thermoguard fireproof?
No. It is fire-retardant and tested non-ignitable to ISO 11925-2, but the base fibre is organic and the product is not classified as non-combustible.
Can Thermoguard be supplied for manufacturing?
Yes. It is used as a technical felt in products made by OEM manufacturers. Contact us for volume and custom-width enquiries.
What is the maximum surface temperature?
Please contact our technical team with your operating temperature so we can confirm suitability.
How to Order
Capiworld supplies to order. Pricing depends on thickness, R-value, panel size, surface finish and order quantity, so we quote each project individually rather than listing a single price.
To place a pre-order or request pricing:
Call (+61) 0426 393 999 — Brian Nguyen, Australia
WhatsApp +84 94 868 0906 — Dave Le, Sales
Email info@capiworld.com.au
Tell us the product, thickness or R-value, panel size, approximate quantity and the project location. We will send you a detailed quotation, along with technical data sheets, test reports and samples if required.
Most quotations are returned within one business day.
